I-690v rack inyusa isihluzi esisebenzayo

Ngaba ujonge i-690v rack rack i-filter esebenzayo? UGeya ubonelela ngezisombululo ezisemgangathweni eziphezulu ngomsebenzi ophezulu kunye nokuthembeka. Fumana i-quitate ebanzi ilungiselelwe iimfuno zakho kunye nokuphucula ukusebenza kwenkqubo yakho. Nxibelelana nathi ngoku amaxabiso afanelekileyo kunye nenkxaso egqwesileyo emva kwentengiso. Yenza ngokukhawuleza ukukhusela imveliso yakho namhlanje!

Thumela uMbuzo

Ingcaciso yeMveliso

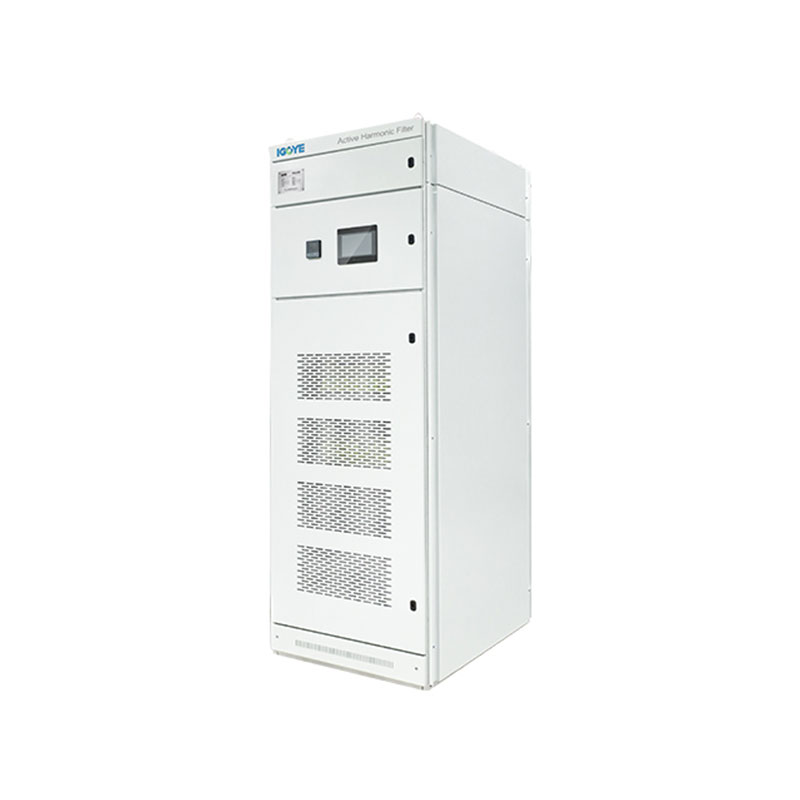

I-690V Rack inyusa isihluzi esisebenzayo (AHF) inikezela ngonciphiso oluphambili kwi-voltage ephezulu (i-690v ± 20%). Le candelo likhutshwe yi-rack lisebenzisa i-DPSP + i-CPL yedijithali yoLawulo lweDijithali kunye neTeko yeNqanaba eliDibeneyo leMbuyekezo yeMbuyekezo ye-PROnis ukuya kuthi ga kwi-50. Nge-100Arated i-100A i-100A ixhonywe ngoku, ngokufanelekileyo ilungisa ukungavisisani ngokuhambelana kunye nokungalingani kwesigaba sesithathu. Uyilo lwemodyuli luxhasa uqhagamshelo olufanayo lwethakhono kunye nesondlo senziwe lula. Ukunyanzelwa kokupholisa umoya kuqinisekisa ukusebenza okuthembekileyo. I-690v Rack inyusa icebo lokucoca i-filters inikezela ngolawulo lwenqanaba lomgangatho wombane ukuze kunyanzeliswe iindawo zeshishini.

Inkcazo yemodeli:

Gy	Ahf	0.69	I-100a	/	4l	R
Ikhowudi yeShishini	Isihluzi esisebenzayo	Inqanaba le-voltage 0.69: 690v ± 20%	I-100 ye-Kvar) 100a		I-3l: isigaba esithathu esithathu I-4l: iSigaba se-5 se-4	R: i-rack athe rack

Iimbonakalo:

● Sebenzisa i-DSP + CPDA YONKE INDLELA YOKUZIPHATHA NGOKUGQIBELA
● Ukuthatha uyilo lwemodyuli, eququzelela unxibelelwano olufanayo lwemodyuli ezininzi, kuthatha indawo encinci kwaye kulula ukuyigcina.
● Uyilo lolwakhiwo lwezinto ezizimeleyo zomoya kunye neendawo zokugcina izithembiso ziqinisekisa ukusebenza kwezinto.
● Ingayicoca i-cofatics kuluhlu olubanzi lwee-fats, ukusuka kwi-2 ukuya kwi-50 i-vismonics, kunye nokusombulula ingxaki yokungalingani kwesithathu ngaxeshanye.
● Izinga lokucoca i-filting liphezulu. Ukuba umthamo uvumela, inqanaba elihambelana nokubila ngoku lingaphezulu lama-95%. Seta i-100% yemveliso yangoku yokubeka umda ukuqinisekisa ukusebenza kwexesha elide lwezixhobo.

Izicelo:

I-690v Rack inyusa iifilimu ezisebenzayo zibalulekile ekugcineni umgangatho wamandla kunye nokusebenza kwezixhobo kwiinkqubo zamandla ombane omkhulu:

● Izicelo ezinzima zemizi-mveliso:Ukuthomalalisa i-vismonics eveliswe ziidreyini ezinkulu zerejista (VFDS), iiresti, kunye neminye imithwalo engeyiyo i-intanethi kwiinkqubo ze-voltage ephezulu.
● Imigodi kunye neoyile kunye negesi:Ukuqinisekisa ukusebenza ngokuthenjwa kwezixhobo ezibalulekileyo kwiindawo ezinobunzima kunye nokusasazwa kwamandla evolthi ephezulu.
● Ukudityaniswa kwamandla ahlaziyiweyo:Ukuzinzisa amandla ukusuka kwimithombo yamandla ahlaziyiweyo ahlaziyiweyo ehlaziyiweyo edibeneyo kwigridi.
● Amaziko edatha kunye nezibonelelo ezibalulekileyo:Ukukhusela izixhobo ezinobuthathaka kunye nokugcina umgangatho wamandla kwiziko ledatha ephezulu ye-voltage.

I-690v Rack i-Fishters esebenzayo inikezela ngonciphiso olusebenzayo lomgangatho wombane ophuculweyo kwizicelo eziphakamileyo ze-voltage.

690V Rack Mount Active Harmonic Filter

Iparamitha zobugcisa:

	I-220V uthotho	380v Serichunge	I-500v Series		I-690v Series
Ukuphakama	<2000m, ngaphezulu kwe-2000m, i-DEFRAY NO-GB / T3859.2
Ubushushu obugciniwe	-20 ~ + 50 ℃
Ubuntu bezizalwane	≤90%, akukho uqinisekiso kumphezulu xa ubushushu benyanga ubuncinci bungama-25 ℃
Inqanaba lokungcola	Inqanaba le-III ngezantsi
I-Voltage eSebenzayo	I-AC220V ± 20%	I-AC380V ± 20%	I-AC500V ± 20%		I-AC690V ± 20%
Ukusebenza rhoqo	I-50hz ± 5%
Imbuyekezo yangoku	25A	25/50/75/100 / 150A	I-100a		I-100a
Isakhiwo seGridi	L / n	I-3P3W / 3P4W	I-3P3W / 3P4W		I-3P3W / 3P4W
Inani leeyunithi idityaniswe kwi-parallel	Incitshisiwe
Ukusebenza kakuhle komatshini ngokubanzi	≥97%
Isakhiwo seGridi	32kz	16kz	12.8KHz		12.8KHz
Uluhlu lweMbuyekezo	2 ~ 50 Amaxesha, inqanaba leMbuyekezo eliThengiswayo lihlengahlengiswa
Ukuchongwa komsebenzi	Amandla asebenzayo	Amandla asebenzekileyo, amandla asebenzayo + Asymmetry
Amandla asebenzayo Imbuyekezo iMbuyekezo	≥95%	> I-92%
Ukuhluma okungathathi hlangothi amandla		Ukubanakho kwe-nehlalting yomgca kukucoca amaxesha ama-3 okwesigaba sokucoca kwinqanaba
Ixesha lokuphendula elipheleleyo	<10ms	<40ms		<40ms	<40ms
Ingxolo	≤60DB	≤60DB		≤65db	≤65db
Indlela yokulawula	I-2--Indlela ye-R485 ye-Nokia (ixhasa i-GPRS / WiFi)
Ukhuseleko	Ukulayisha ngaphezulu, isoftware / isoftware ephezulu, i-overvolstage ye-grid kunye nokungaphantsi komhlaba, ukusilela kwamandla, ukhuseleko olungaqhelekanga, i-qho.	Ukulayisha ngaphezulu, isoftware / isoftware i-hardcurrent, i-grid overvolstage, i-Grid Vilage, ukusilela kwamandla, ukusilela kwamandla, ukhuseleko lwe-proquency, njl.
Indlela yokufaka	I-rack / i-wall-ikhutshiwe		Rack
Umgca ongenayo	Umqolo ongenayo (Uhlobo lwerack), ingenangaphezulu (i-Wall-inyuka)		Umgca ongenayo
Inqanaba lokhuseleko	IP20

Imodeli kunye nokucaciswa:

690V Rack Mount Active Harmonic Filter

Inombolo yemodeli	Ikalwe okwangoku (a)	I-Voltage yeNkqubo (v)	Ubungakanani (d * h * h)	Indlela yokupholisa
I-GY APF-0.22-25a / 2l-r / w	25	220	I-220 * 330 * 160mm	Ukunyanzelwa kokupholisa umoya
I-GY APF-0.4-25a / 4l-r / w	25	I-380 ± 20%	I-460 * 490 * 89mm
I-GY APF-0.4-50A / 4l-r / w	50	I-380 ± 20%	I-460 * 490 * 89mm
I-GY APF-0.4-75A / 4l-r / w	75	I-380 ± 20%	I-500 * 510 * I-190mm
I-GY APF-0.4-100a / 4l-r / w	100	I-380 ± 20%	I-500 * 550 * 240mm
I-GY APF-0.4-150A / 4l-r / w	150	I-380 ± 20%	I-500 * 550 * 240mm
I-GY APF-0.5-100a / 4l-r / w	100	I-500 ± 20%	I-495 * 675 * 275mm
I-GY APF-0.69-100a / 4l-r / w	100	I-690 ± 20%	I-495 * 675 * 275mm
