I-380v rack inyuka i-filter esebenzayo
Ngaba ufuna i-up 380v rack rack ye-filter esebenzayo? UGeya ubonelela ngezisombululo ezilumkileyo, ezinokuthenjwa ezilungiselelwe iimfuno zakho. Ukuqwalaselwa ngokubanzi, ukuqinisekiswa komgangatho, kunye nokuziswa ngokukhawuleza, sinika iimfuneko ezahlukeneyo zabathengi. Nxibelelana nathi ngoku ngamaxabiso athambileyo kunye nenkonzo ye-24 ye-intanethi!

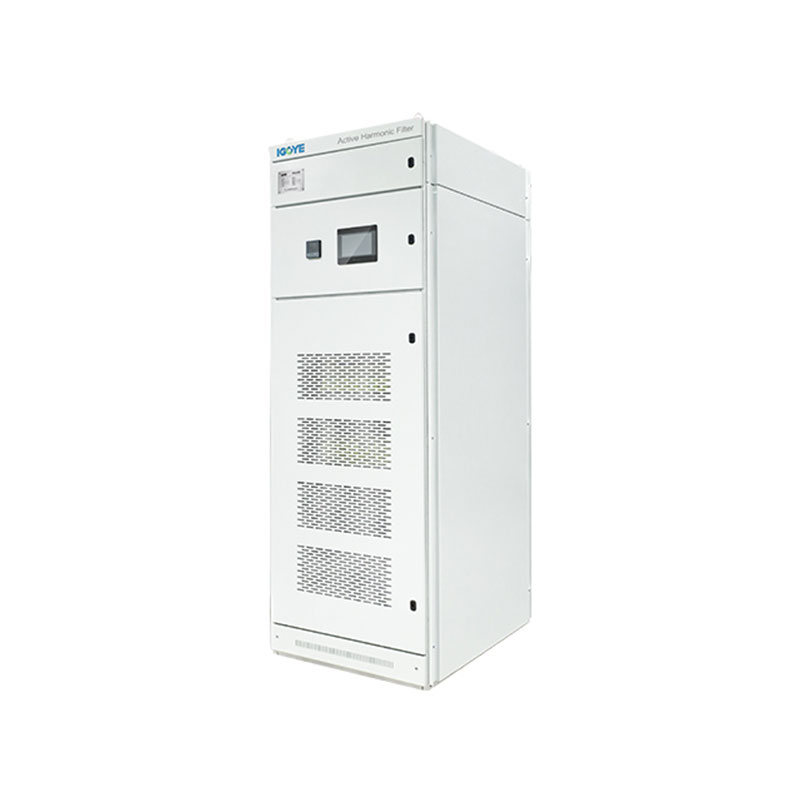

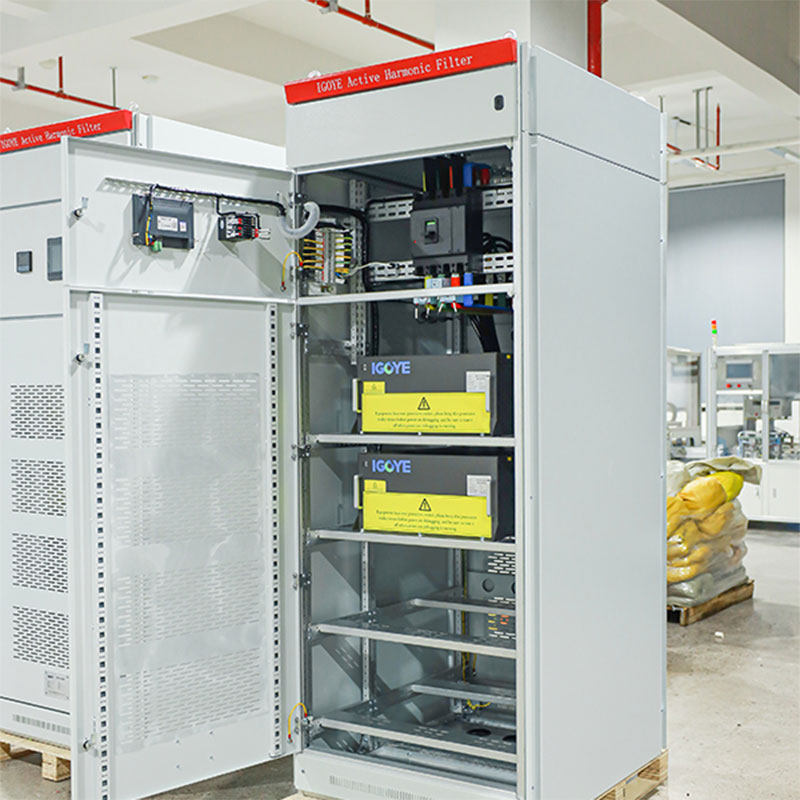

I-380V Rack inyusa i-filter esebenzayo (AHF) ibonelela ngokulinganayo Ukuwunqumla kwezigaba ezi-4 ze-4p4w) kunye nenqanaba lesithathu elinesithathu (3ukufikelela) iinkqubo zamandla. Ukusebenzisa i-DSP + CPLD LOLYIT kunye nenqanaba lesithathu I-Topology, le nxalenye ikhutshelwe i-rack imbuyekezo ukuya kwi-50th Componinic. Uyilo lwemodyuli ye-Modular ixhasa ukufana Unxibelelwano lokunyusa umgangatho kunye nesondlo senziwe lula. Ezininzi Iimodeli ziyafumaneka kunye neereyithi zangoku ezingama-25A ukuya kwi-150a, ilungisa i Uluhlu olubanzi lweemfuno zenkqubo yamandla. Ukunyanzelwa kokupholisa umoya kuqinisekisa ukuthembeka ukusebenza nasezantsi kwemeko. Le rack ye-380V ikhuthazeka Icebo lokucoca i-filmonic libonelela ngesisombululo esomeleleyo nesibethekayo sokuziphatha uphazanyiso.
Inkcazo yemodeli:
| Gy | Ahf | 0.4 | 50a | / | 4l | R |
| Ikhowudi yeShishini | Isihluzi esisebenzayo | Inqanaba le-voltage I-0.4: 380v ± 20% |
Umthamo omiselweyo (Kvar) 25/50/75 / 100 / 150a | I-3l: isigaba esithathu esithathu I-4l: iSigaba se-5 se-4 |
R: i-rack athe rack |
Iimbonakalo:
● Sebenzisa i-DSP + CPDA lonke uLawulo lweDijithali, iTechnology yenqanaba le-Topology,
Isicwangciso esiliqili se-Advanced I-Algorithm ye-Algorithm ye-Algorithm kunye nePWM yokuLawula ukufezekisa
Imbuyekezo echanekileyo ye-HARDEON CHEAFONIC.
● Ukuthatha uyilo lwemodyuli, eququzelela unxibelelwano olufanayo lwezinto ezininzi
Iimodyuli, ithatha indawo encinci kwaye kulula ukuyigcina.
● Uyilo lolwakhiwo lwezinto ezizimeleyo zomoya kunye neendawo zokugcina izinto ezizimeleyo
iqinisekisa ukusebenza okuzinzileyo lwezixhobo.
● Ungayicoca i-cofatics kwindawo ebanzi ye-fats, ukusuka kwi-2 ukuya kwi-50
I-Ivisnics, kwaye isombulule ingxaki yokungalingani kwesithathu ngexesha elinye.
● Izinga lokucoca i-filting liphezulu. Ukuba umthamo uvumela, i-vismonic
Izinga lokucoca ngoku linokuba phezulu njenge-95%. Seta i-100% yokubeka umda
Imveliso yokuqinisekisa ukusebenza kwexesha elide lwezixhobo.
Izicelo:
I-380v rack i-rack i-filters esebenzayo ye-activic ikhutshiwe eyahlukeneyo Amashishini ukuqinisekisa umgangatho wamandla kunye nokuzinza kwenkqubo:
● Amaziko eDatha:Ukukhusela imishini-egxekayo kwaye
Izixhobo zeNethiwekhi kwimiba enxulumene nokuhambelana.
● Iindawo zemizimo zezoMveliso:Ukuphucula ukusebenza kwaye
Ukuthembeka kweedrives eziguquguqukayo (i-VFDS) kunye nolunye un-mgca
imithwalo.
● Izityalo zeMveliso:Ukuphucula into ebonakalayo kunye nokunciphisa
Ukusetyenziswa kwamandla.
● Ioyile kunye negesi:Ukugcina amandla azinzileyo ukuze ube nobuthathaka
iinkqubo zokulawula inkqubo.
I-380V i-rack inyusa iifilimu ezisebenzayo ze-active Umgangatho wamandla othembekileyo kwizicelo ezifunwayo.
Iparamitha zobugcisa:
| I-220V uthotho | 380v Serichunge | I-500v Series | I-690v Series | ||
| Ukuphakama | <2000m, ngaphezulu kwe-2000m, i-DEFRAY NO-GB / T3859.2 | ||||
| Ubushushu obugciniwe | -20 ~ + 50 ℃ | ||||
| Ubuntu bezizalwane | ≤90%, akukho uqinisekiso kumphezulu xa qho ngenyanga Ubuncinci obuncinci buyi-25 ℃ | ||||
| Inqanaba lokungcola | Inqanaba le-III ngezantsi | ||||
| I-Voltage eSebenzayo | I-AC220V ± 20% | I-AC380V ± 20% | I-AC500V ± 20% | I-AC690V ± 20% | |
| Ukusebenza rhoqo | I-50hz ± 5% | ||||
| Imbuyekezo yangoku | 25A | 25/50/75/100 / 150A | I-100a | I-100a | |
| Isakhiwo seGridi | L / n | I-3P3W / 3P4W | I-3P3W / 3P4W | I-3P3W / 3P4W | |
| Inani leeyunithi idityaniswe kwi-parallel |
Incitshisiwe | ||||
| Ukusebenza kakuhle komatshini ngokubanzi | ≥97% | ||||
| Isakhiwo seGridi | 32kz | 16kz | 12.8KHz | 12.8KHz | |
| Uluhlu lweMbuyekezo | 2 ~ 50 Amaxesha, inqanaba leMbuyekezo eliThengiswayo lihlengahlengiswa | ||||
| Ukuchongwa komsebenzi | Amandla asebenzayo | Amandla asebenzekileyo, amandla asebenzayo + Asymmetry | |||
| Amandla asebenzayo Imbuyekezo iMbuyekezo |
≥95% | > I-92% | |||
| Ukuhluma okungathathi hlangothi amandla |
Ukuphathwa kwe-Netral Foodling Riling ngamaxesha ama-3 eSigaba amandla okucoca | ||||
| Ixesha lokuphendula elipheleleyo | <10ms | <40ms | <40ms | <40ms | |
| Ingxolo | ≤60DB | ≤60DB | ≤65db | ≤65db | |
| Indlela yokulawula | I-2--Indlela ye-R485 ye-Nokia (ixhasa i-GPRS / WiFi) | ||||
| Ukhuseleko | Ukulayisha ngaphezulu, isoftware / izixhobo ze-Hardware ngaphezulu, Igridi ngaphezulu kunye nokungaphantsi komhlaba, ukusilela kwamandla, i-overtemturature, i-frequency Ukhuseleko olungaqhelekanga, njl. | Ukulayisha ngaphezulu, isoftware / izixhobo ze-Hardware ngaphezulu, Igridi ngaphezulu kwaye i-Deverllstage, ukungalingani kwe-voltage ye-grid, ukusilela kwamandla, I-overemeturature, i-frequency engaqhelekanga, isekethe emfutshane ukhuseleko, njl. | |||
| Indlela yokufaka | I-rack / i-wall-ikhutshiwe | Rack | |||
| Umgca ongenayo | Umqolo ongenayo (Uhlobo lwerack), ingenangaphezulu (i-Wall-inyuka) | Umgca ongenayo | |||
| Inqanaba lokhuseleko | IP20 | ||||
Imodeli kunye nokucaciswa:
| Iimodeli | ||||
|---|---|---|---|---|
| Inombolo yemodeli | Ikalwe okwangoku (a) | I-Voltage yeNkqubo (v) | Ubungakanani (d * h * h) | Indlela yokupholisa |
| I-GY APF-0.22-25a / 2l-r / w | 25 | 220 | I-220 * 330 * 160mm | Ukunyanzelwa kokupholisa umoya |
| I-GY APF-0.4-25a / 4l-r / w | 25 | I-380 ± 20% | I-460 * 490 * 89mm | |
| I-GY APF-0.4-50A / 4l-r / w | 50 | I-380 ± 20% | I-460 * 490 * 89mm | |
| I-GY APF-0.4-75A / 4l-r / w | 75 | I-380 ± 20% | I-500 * 510 * I-190mm | |
| I-GY APF-0.4-100a / 4l-r / w | 100 | I-380 ± 20% | I-500 * 550 * 240mm | |
| I-GY APF-0.4-150A / 4l-r / w | 150 | I-380 ± 20% | I-500 * 550 * 240mm | |
| I-GY APF-0.5-100a / 4l-r / w | 100 | I-500 ± 20% | I-495 * 675 * 275mm | |
| I-GY APF-0.69-100a / 4l-r / w | 100 | I-690 ± 20% | I-495 * 675 * 275mm | |
