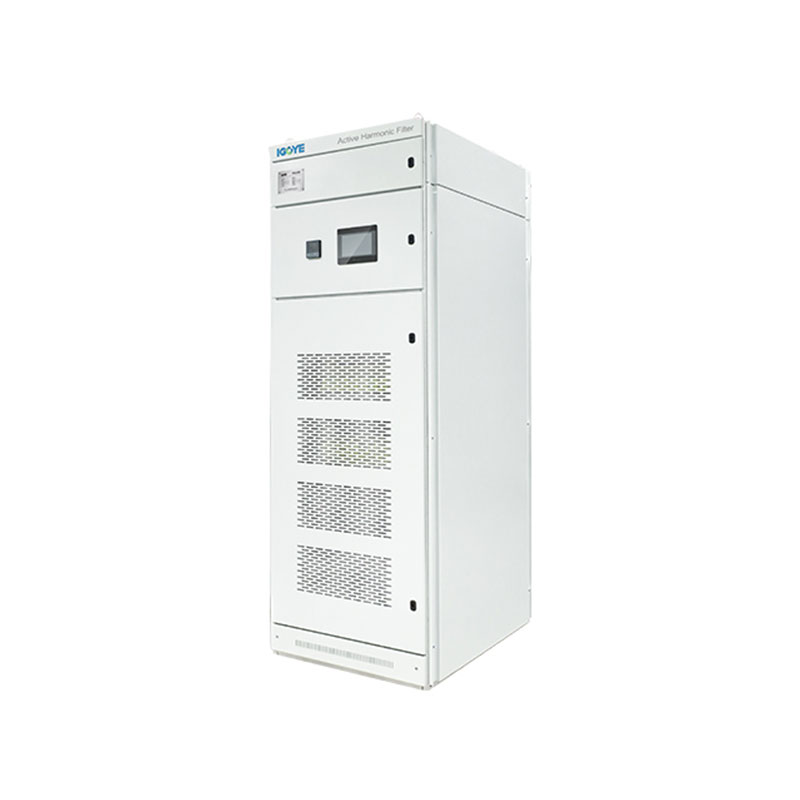

I-690v Ikhabi iKhabhinethi-Chwetheza isihluzi esisebenzayo
UGeya yi-690v iKhabhinethi-Chwetheza umenzi we-filter osebenzayo kunye nomthengisi e China. Iimpawu zolawulo lwedijithali, uyilo lwemodyuli kunye nembewu ihlawula ukuya kuthi ga kwi-50th Commonic, ukulungisa ukungalingani. Ilungele iinkqubo zamandla e-voltage, ishishini elinzima, kunye nezicelo zaselwandle. Gcwalisa ifom yethu ngoku ukufumana isicatshulwa esikhawulezileyo seemfuno zakho zokuthenga!

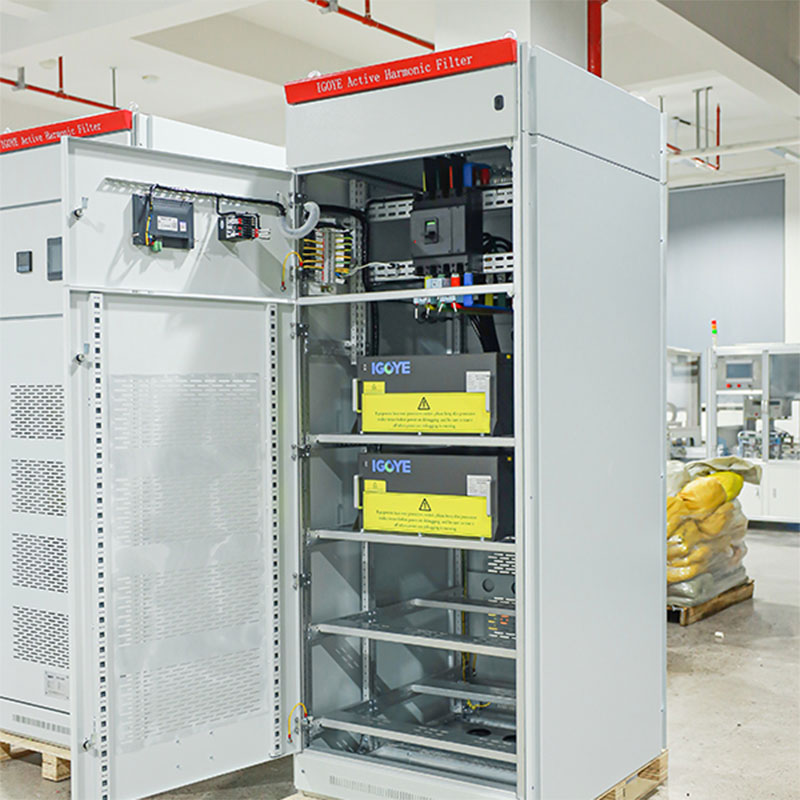

Ikhabhathi ye-690v-uhlobo lokucoca i-filter (APF) ibonelela ngesisombululo sombane sokunciphisa ukunciphisa kunye nokuphuculwa komgangatho kumandla kwi-690v ye-wire yenqanaba lesithathu kunye neenkqubo zombane ezine-wire. Le APF isebenzisa i-DSP ePhambili i-DSP + i-CPL yedijithali kunye ne-topology yenqanaba elithathu kwimbuyekezo yangoku yeMbuyekezo ukuya kwi-50th Mamances, ngaxeshanye ukulungisa ukungalingani kwesithathu. Uloyilo olusemongolo luxhasa umthamo oncomekayo ngokwenza ukuba uqhagamshelo olufanayo lweyunithi ezininzi. Igcinwe kwiKhabhinethi eyomeleleyo ene-ducts ezizimeleyo, IKhabhinethi eyi-690v-uhlobo lokucoca i-filtonic iqinisekisa ukusebenza ngokuthembekileyo kunye nolondolozo oluthile. Ngereyithi ekhoyo yangoku ukuya kuthi ga kwi-300A kunye ne-Kvar caces ukuya kuthi ga kwi-300, le APF ihambisa ukuphuculwa komgangatho osebenzayo wamandla kwiinkqubo ezingama-690v.
Inkcazo yemodeli:
| Gy | Ahf | 0.69 | I-100a | / | 4l | C |
| Ikhowudi yeShishini | Isihluzi esisebenzayo | Inqanaba le-voltage 0.69: 690v ± 20% |
I-100 ye-Kvar) 100a | I-3l: isigaba esithathu esithathu I-4l: iSigaba se-5 se-4 |
C: IKhabhinethi |
Iimbonakalo:
● Sebenzisa i-DSP + CPDA YONKE INDLELA YOKUZIPHATHA NGOKUGQIBELA
● Ukuthatha uyilo lwemodyuli, eququzelela unxibelelwano olufanayo lwemodyuli ezininzi, kuthatha indawo encinci kwaye kulula ukuyigcina.
● Uyilo lolwakhiwo lwezinto ezizimeleyo zomoya kunye neendawo zokugcina izithembiso ziqinisekisa ukusebenza kwezinto.
● Ingayicoca i-cofatics kuluhlu olubanzi lwee-fats, ukusuka kwi-2 ukuya kwi-50 i-vismonics, kunye nokusombulula ingxaki yokungalingani kwesithathu ngaxeshanye.
● Izinga lokucoca i-filting liphezulu. Ukuba umthamo uvumela, inqanaba elihambelana nokubila ngoku lingaphezulu lama-95%. Seta i-100% yemveliso yangoku yokubeka umda ukuqinisekisa ukusebenza kwexesha elide lwezixhobo.
Izicelo:
I-690v Ikhabi Ibhabhethi-Chwetheza iifilimu ezisebenzayo ze-fildonic zilungele ukuphuculwa komgangatho wamandla kwizicwangciso ze-voltage ephakathi:
● Iinkqubo zamandla eVolvage:Ukuzinzisa ukusasazwa kwamandla kwinethiwekhi ezingama-690v, ukunciphisa ukungavisisani kunye nokuphucula ukusebenza kwenkqubo.
● Iindawo ezinomzi mveliso:Ukuqinisekisa ukusebenza ngokuthembekileyo kwezixhobo ezibuthathaka kumashishini anemithwalo ehambelana ne-vismonic, njengemigodi, ioyile kunye negesi, kunye ne-petrochemicals.
● I-Pow Stage Drives motor:Ukuncitshiswa kwemijelo ye-motormonic eyenziwe yidrive enkulu yemoto, ukunciphisa ukugqwetha kwe-voltage kunye nokuphucula ukusebenza kwemoto.
● Amaqonga aselwandle nasezantsiUkubonelela ngomgangatho wamandla ozinzileyo nothembekileyo kwiindawo ezinobunzima apho iinkqubo ezingama-690v zixhaphakile.
I-690v Ikhabi Ibhabhethi-Chwetheza iifilimu ezisebenzayo zefilti zibonelela ngesisombululo sokusebenza esiphezulu sokwenza umgangatho wamandla ofanelekileyo kwi-690v izicelo.
Iparamitha zobugcisa:
| I-220V uthotho | 380v Serichunge | I-500v Series | I-690v Series | ||
| Ukuphakama | <2000m, ngaphezulu kwe-2000m, i-DEFRAY NO-GB / T3859.2 | ||||
| Ubushushu obugciniwe | -20 ~ + 50 ℃ | ||||
| Ubuntu bezizalwane | ≤90%, akukho uqinisekiso kumphezulu xa ubushushu benyanga ubuncinci bungama-25 ℃ | ||||
| Inqanaba lokungcola | Inqanaba le-III ngezantsi | ||||
| I-Voltage eSebenzayo | I-AC220V ± 20% | I-AC380V ± 20% | I-AC500V ± 20% | I-AC690V ± 20% | |
| Ukusebenza rhoqo | I-50hz ± 5% | ||||
| Imbuyekezo yangoku | 25A | 25/50/75/100 / 150A | I-100a | I-100a | |
| Ubume begridi | L / n | I-3P3W / 3P4W | I-3P3W / 3P4W | I-3P3W / 3P4W | |
| Inani leeyunithi idityaniswe kwi-parallel |
Incitshisiwe | ||||
| Ukusebenza kakuhle komatshini ngokubanzi | ≥97% | ||||
| Ubume begridi | 32kz | 16kz | 12.8KHz | 12.8KHz | |
| Uluhlu lweMbuyekezo | 2 ~ 50 Amaxesha, inqanaba leMbuyekezo eliThengiswayo lihlengahlengiswa | ||||
| Ukuchongwa komsebenzi | Amandla asebenzayo | Amandla asebenzekileyo, amandla asebenzayo + Asymmetry | |||
| Amandla asebenzayo Imbuyekezo iMbuyekezo |
≥95% | > I-92% | |||
| Ukuhluma okungathathi hlangothi amandla |
Ukubanakho kwe-nehlalting yomgca kukucoca amaxesha ama-3 okwesigaba sokucoca kwinqanaba | ||||
| Ixesha lokuphendula elipheleleyo | <10ms | <40ms | <40ms | <40ms | |
| Ingxolo | ≤60DB | ≤60DB | ≤65db | ≤65db | |
| Indlela yokulawula | I-2--Indlela ye-R485 ye-Nokia (ixhasa i-GPRS / WiFi) | ||||
| Ukhuseleko | Ukulayisha ngaphezulu, isoftware / isoftware ephezulu, i-overvolstage ye-grid kunye nokungaphantsi komhlaba, ukusilela kwamandla, ukhuseleko olungaqhelekanga, i-qho. | Ukulayisha ngaphezulu, isoftware / isoftware i-hardcurrent, i-grid overvolstage, i-Grid Vilage, ukusilela kwamandla, ukusilela kwamandla, ukhuseleko lwe-proquency, njl. | |||
| Indlela yokufaka | I-rack / i-wall-ikhutshiwe | Rack | |||
| Umgca ongenayo | Umqolo ongenayo (Uhlobo lwerack), ingenangaphezulu (i-Wall-inyuka) | Umgca ongenayo | |||
| Inqanaba lokhuseleko | IP20 | ||||
Imodeli kunye nokucaciswa:
| Imodeli yesixhobo seKhabhinethi | ||||
|---|---|---|---|---|
| Inombolo yemodeli | Umthamo weMbuyekezo (i-Kvar) | I-Voltage yeNkqubo (v) | Ubungakanani (d * h * h) | Indlela yokupholisa |
| I-GY APF-0.4-100a / 4l-c | 100 | I-380 ± 20% | I-800 * 1000 * 2200mm | Ukunyanzelwa kokupholisa umoya |
| I-GY APF-0.4-150A / 4l-C | 150 | I-380 ± 20% | I-800 * 1000 * 2200mm | |
| I-GY APF-0.4-200A / 4l-C | 200 | I-380 ± 20% | I-800 * 1000 * 2200mm | |
| I-GY APF-0.4-250A / 4l-C | 250 | I-380 ± 20% | I-800 * 1000 * 2200mm | |
| I-GY APF-0.4-300A / 4l-C | 300 | I-380 ± 20% | I-800 * 1000 * 2200mm | |
| I-GY APF-0.4-40000A / 4l-C | 400 | I-380 ± 20% | I-800 * 1000 * 2200mm | |
| I-GY APF-0.5-300A / 4l-C | 300 | I-500 ± 20% | I-800 * 1000 * 2200mm | |
| I-GY APF-0.69-300A / 4l-C | 300 | I-690 ± 20% | I-800 * 1000 * 2200mm | |
