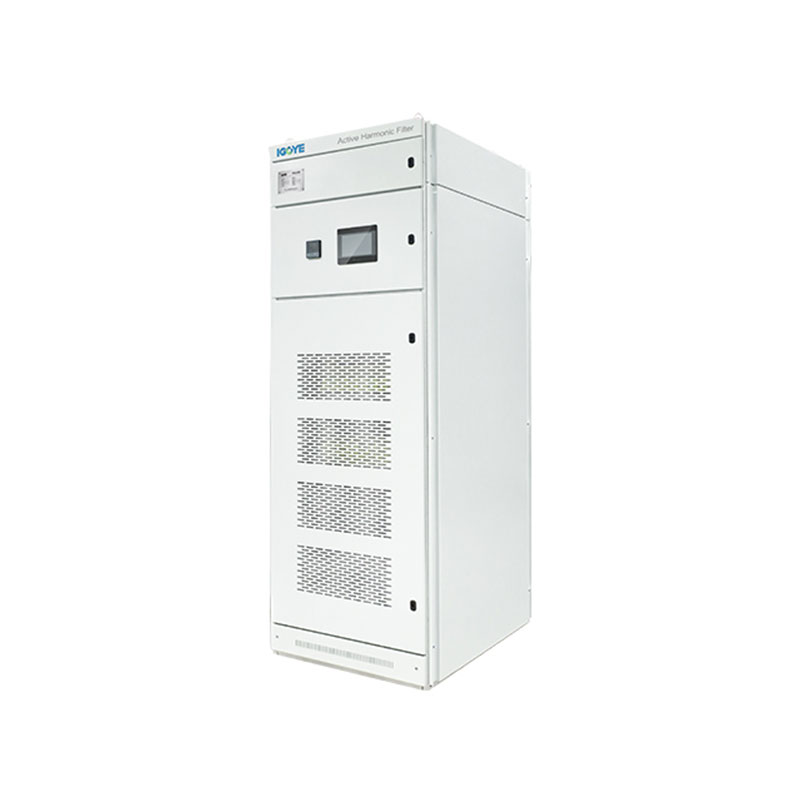

Ikhabhathi ye-380v-chwetheza i-filter esebenzayo
Ikhabhathi yeGeya 380v iKhabinali elisebenzayo lokuhluza isihluzi esinomgangatho we-Premiyamu sinika ukuncitshiswa kwe-3-isigaba (3/4). Isebenzisa ulawulo lwedijithali, inomxube wezemongolo weKhabhinethi kwaye ihlawula ukuya kuthi ga kwi-50th Livelonic, ukulungisa ukungalingani. Ilungele amaziko edatha, ezenzekelayo zemveliso, kunye nokudityaniswa kwamandla ahlaziyiweyo. Fikelela ekufundeni ukuba singanikezela njani izisombululo ezizezizilo ngamaxabiso amakhulu.

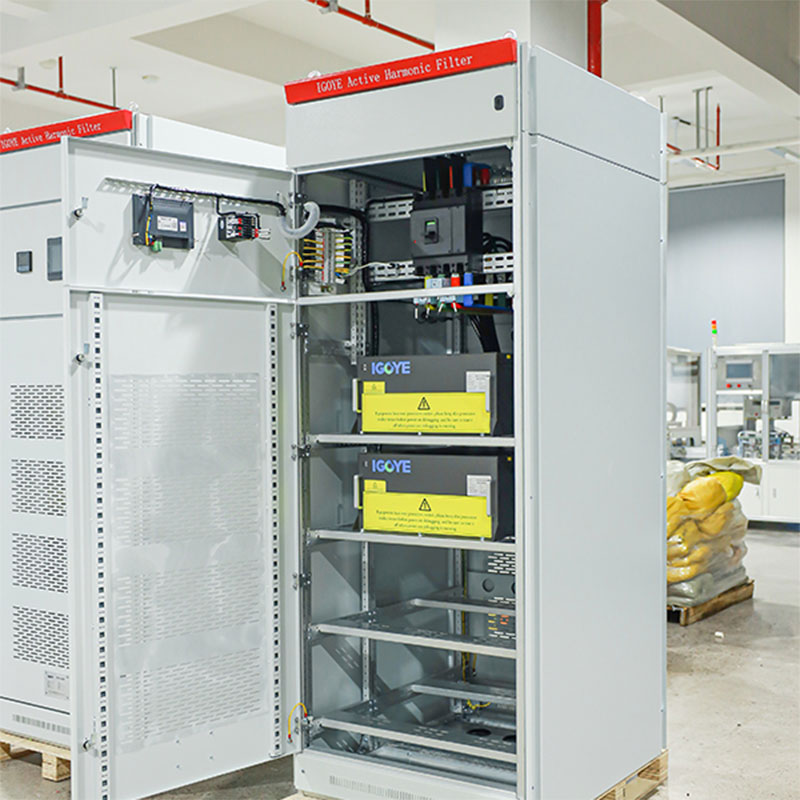

Ikhabhathi ye-380v-chebhathi ye-filters esebenzayo Ukusebenzisa i-DSP ePhambili ye-DSP + i-CPLM yedijithali kunye ne-topology yenqanaba le-3, le APF ibonelela ngembuyekezo echaza imbuyekezo ye-50th ye-odolo, ngaxeshanye ukulungisa ukungalingani kwesithathu. Uyilo lwemodyuli luvumela ukwandiswa kwezakhono eziguquguqukayo ngokunxibelelana ngokuhambelana. Igcinwe kwiKhabhinethi eyomeleleyo ebonisa i-ducts egudileyo, i-380v yeKhabhinethi esebenzayo ye-filter iqinisekisa ukusebenza okungaguqukiyo kunye nolondolozo oluthile. Ifumaneka kuluhlu lweereyithi zangoku (i-100a-400a) kunye ne-Kvar ye-Kvar (100-400), le APF ibonelela ngokuphuculwa kwamandla oqoqosho olubanzi lweenkqubo ezingama-380V.
Inkcazo yemodeli:
| Gy | Ahf | 0.4 | 50a | / | 4l | C |
| Ikhowudi yeShishini | Isihluzi esisebenzayo | Inqanaba le-voltage I-0.4: 380v ± 20% |
Umthamo omiselweyo (Kvar) 25/50/75 / 100 / 150a | I-3l: isigaba esithathu esithathu I-4l: iSigaba se-5 se-4 |
C: IKhabhinethi |
Iimbonakalo:
● Sebenzisa i-DSP + CPDA YONKE INDLELA YOKUZIPHATHA NGOKUGQIBELA
● Ukuthatha uyilo lwemodyuli, eququzelela unxibelelwano olufanayo lwemodyuli ezininzi, kuthatha indawo encinci kwaye kulula ukuyigcina.
● Uyilo lolwakhiwo lwezinto ezizimeleyo zomoya kunye neendawo zokugcina izithembiso ziqinisekisa ukusebenza kwezinto.
● Ingayicoca i-cofatics kuluhlu olubanzi lwee-fats, ukusuka kwi-2 ukuya kwi-50 i-vismonics, kunye nokusombulula ingxaki yokungalingani kwesithathu ngaxeshanye.
● Izinga lokucoca i-filting liphezulu. Ukuba umthamo uvumela, inqanaba elihambelana nokubila ngoku lingaphezulu lama-95%. Seta i-100% yemveliso yangoku yokubeka umda ukuqinisekisa ukusebenza kwexesha elide lwezixhobo.
Izicelo:
IKhabhinethi i-380v IKhabhinethi-Chwetheza iifilimu ezisebenzayo ze-fildonic zilungele ukusetyenziswa kwezicelo ezifunwayo ngombane kwi-380v:
● Amaziko amakhulu eDatha:Ukugcina amandla azinzileyo ngenxa yeziseko zophuhliso eziyintloko, ukuthintela ukulahleka kwedatha kunye ne-downtime ngenxa yokuphazamiseka kwexabiso.
● I-Automast Autous:Ukuqinisekiswa kokusebenza ngokuchanekileyo kunye nokuthenjwa kweenkqubo ezenzekelayo ngokunciphisa uphaphulo-nxaxheba.
● Iindawo ezinomzi mveliso:Ukunciphisa i-hasmonics eveliswe ngoomatshini abakhulu kunye nokuqhutywa rhoqo kwendlela yokuqhuba kwizicwangciso zoMveliso.
● Ukudityaniswa kwamandla ahlaziyiweyo:Ukuphuculwa komgangatho wamandla kwinqanaba lokuphikisana okuqhelekileyo kokudityaniswa okungenamthungo kwimithombo yamandla ahlaziyiweyo.
Ikhabhathi ye-380v IKhabhinethi ehambelana neefilimu ezisebenzayo zibonelela ngesisombululo esibanzi sokuphucula umgangatho womgangatho wamandla ekufumaneni izicelo ezingama-380v, ukuqinisekisa ukusebenza ngokuchanekileyo.
Iparamitha zobugcisa:
| I-220V uthotho | 380v Serichunge | I-500v Series | I-690v Series | ||
| Ukuphakama | <2000m, ngaphezulu kwe-2000m, i-DEFRAY NO-GB / T3859.2 | ||||
| Ubushushu obugciniwe | -20 ~ + 50 ℃ | ||||
| Ubuntu bezizalwane | ≤90%, akukho uqinisekiso kumphezulu xa ubushushu benyanga ubuncinci bungama-25 ℃ | ||||
| Inqanaba lokungcola | Inqanaba le-III ngezantsi | ||||
| I-Voltage eSebenzayo | I-AC220V ± 20% | I-AC380V ± 20% | I-AC500V ± 20% | I-AC690V ± 20% | |
| Ukusebenza rhoqo | I-50hz ± 5% | ||||
| Imbuyekezo yangoku | 25A | 25/50/75/100 / 150A | I-100a | I-100a | |
| Isakhiwo seGridi | L / n | I-3P3W / 3P4W | I-3P3W / 3P4W | I-3P3W / 3P4W | |
| Inani leeyunithi idityaniswe kwi-parallel |
Incitshisiwe | ||||
| Ukusebenza kakuhle komatshini ngokubanzi | ≥97% | ||||
| Isakhiwo seGridi | 32kz | 16kz | 12.8KHz | 12.8KHz | |
| Uluhlu lweMbuyekezo | 2 ~ 50 Amaxesha, inqanaba leMbuyekezo eliThengiswayo lihlengahlengiswa | ||||
| Ukuchongwa komsebenzi | Amandla asebenzayo | Amandla asebenzekileyo, amandla asebenzayo + Asymmetry | |||
| Amandla asebenzayo Imbuyekezo iMbuyekezo |
≥95% | > I-92% | |||
| Ukuhluma okungathathi hlangothi amandla |
Ukubanakho kwe-nehlalting yomgca kukucoca amaxesha ama-3 okwesigaba sokucoca kwinqanaba | ||||
| Ixesha lokuphendula elipheleleyo | <10ms | <40ms | <40ms | <40ms | |
| Ingxolo | ≤60DB | ≤60DB | ≤65db | ≤65db | |
| Indlela yokulawula | I-2--Indlela ye-R485 ye-Nokia (ixhasa i-GPRS / WiFi) | ||||
| Ukhuseleko | Ukulayisha ngaphezulu, isoftware / isoftware ephezulu, i-overvolstage ye-grid kunye nokungaphantsi komhlaba, ukusilela kwamandla, ukhuseleko olungaqhelekanga, i-qho. | Ukulayisha ngaphezulu, isoftware / isoftware i-hardcurrent, i-grid overvolstage, i-Grid Vilage, ukusilela kwamandla, ukusilela kwamandla, ukhuseleko lwe-proquency, njl. | |||
| Indlela yokufaka | I-rack / i-wall-ikhutshiwe | Rack | |||
| Umgca ongenayo | Umqolo ongenayo (Uhlobo lwerack), ingenangaphezulu (i-Wall-inyuka) | Umgca ongenayo | |||
| Inqanaba lokhuseleko | IP20 | ||||
Imodeli kunye nokucaciswa:
| Imodeli yesixhobo seKhabhinethi | ||||
|---|---|---|---|---|
| Inombolo yemodeli | Umthamo weMbuyekezo (i-Kvar) | I-Voltage yeNkqubo (v) | Ubungakanani (d * h * h) | Indlela yokupholisa |
| I-GY APF-0.4-100a / 4l-C | 100 | I-380 ± 20% | I-800 * 1000 * 2200mm | Ukunyanzelwa kokupholisa umoya |
| I-GY APF-0.4-150A / 4l-C | 150 | I-380 ± 20% | I-800 * 1000 * 2200mm | |
| I-GY APF-0.4-200A / 4l-C | 200 | I-380 ± 20% | I-800 * 1000 * 2200mm | |
| I-GY APF-0.4-250A / 4l-C | 250 | I-380 ± 20% | I-800 * 1000 * 2200mm | |
| I-GY APF-0.4-300A / 4l-C | 300 | I-380 ± 20% | I-800 * 1000 * 2200mm | |
| I-GY APF-0.4-40000A / 4l-C | 400 | I-380 ± 20% | I-800 * 1000 * 2200mm | |
| I-GY APF-0.5-300A / 4l-C | 300 | I-500 ± 20% | I-800 * 1000 * 2200mm | |
| I-GY APF-0.69-300A / 4l-C | 300 | I-690 ± 20% | I-800 * 1000 * 2200mm | |
