Chwetheza ikhabhathi

Ukwazisa ngekhabhathi yohlobo lweKhabhinethi iVidiyo ye-Sciest Adval Generator isisombululo esifanelekileyo se-Budssion yakho!. Ukulungiswa okunamandla, <10MS impendulo, uyilo lwemodyuli. Ilungele ishishini elinzima, ioyile kunye negesi, imigodi, kunye namandla ahlaziyiweyo.

Thumela uMbuzo

Ingcaciso yeMveliso

Chwetheza ii-verators zeKhabhinethi eziPhambili eziPhambili zibonelela ngembuyekezo yamandla asebenzayo esebenzayo kwizicelo zemveliso. Ezi nkqubo, zigcinwe kwikhasithi yebhunga elomeleleyo, zibonelela ngolungiso olunamandla noluchanekileyo lwezinto eziguquguqukayo, ukuphucula uzinzo lwenkqubo kunye nokusebenza kakuhle kwenkqubo. Ukusebenzisa i-DSP SPC + i-CPL yeDijithali yeDijithali kunye neTekhnoloji yeTekhnoloji ye-Topology, bazisa amaxesha okuphendula ngokukhawuleza (<10ms) ukuya kwiindawo ezahlukeneyo zomthwalo. Uyilo lwemodyuli lunceda ukwanda kwezakhono eziguquguqukayo kunxibelelwano olufanayo lweyunithi ezininzi. Iimpawu eziphambili zibandakanya ukupholisa komoya opholileyo, izinto ezikhuselweyo zokhuselo (ngaphezulu, i-overvolstage, i-overvolstage, ngaphezulu, njl njl), kunye nezakhono zokubeka iliso ekude. Ifumaneka kwimigangatho eyahlukeneyo yeKvar kunye namanqanaba e-voltage ukuze ilungele iinkqubo ezahlukeneyo zombane.

Inkcazo yemodeli:

Gy	I-asvg	0.4	I-50k	/	4l	C
Ikhowudi yeShishini	I-Static Vernerator	Inqanaba le-voltage I-0.22: 220v I-0.4: 380v ± 20% I-0.5: 500V ± 20% 0.69: 690v ± 20%	Umthamo othintelwe (i-Kvar) 5/5 / 35/50/75 / 100kvar		I-2l: isigaba esinye I-3l: isigaba esithathu esithathu I-4l: iSigaba se-5 se-4	C: cabint

Iimbonakalo:

● Sebenzisa i-DSP + CPDA LOLWAZI LOKUGQIBELA LOMGAQO-NKQUBO, Itekhnoloji ye-Topology yeTekhnoloji ye-TOPOORK, ISICWANGCISO SOKUSETYENZISWA KOMGAQO-NKQUBO WOKUGQIBELA WOKUFUMANEKA KWEXESHA LOKUFUNDA NOKUGQIBELA.
● Ukuthatha uyilo lwemodyuli, eququzelela unxibelelwano olufanayo lwemodyuli ezininzi, kuthatha indawo encinci kwaye kulula ukuyigcina.
● Uyilo lolwakhiwo lwezinto ezizimeleyo zomoya kunye neendawo zokugcina izithembiso ziqinisekisa ukusebenza kwezinto.
● Yenza imbuyekezo eguqukayo epheleleyo yamandla asebenza ngokuthintela amandla kunye namandla asebenzayo asebenzayo, kwaye usombulule ingxaki yenqanaba lesithathu ngexesha elinye.
● Isantya sokuphendula esinamandla kumthwalo sikwinqanaba le-milzecond, elinokufikelela kwimbuyekezo eguqukayo nechanekileyo kumandla asebenzeyo.

Izicelo:

Chwetheza i-Advators ye-Advances Advances Advances valeres Fumana isicelo kumashishini afuna amandla amakhulu, owodwa azinzileyo. Ukusetyenziswa okuqhelekileyo kubandakanya:

● Ishishini elinzima:Imithetho yentsimbi, izityalo zesamente, kunye nezinye iinkqubo zeshishini ezinzima zixhamla kumgangatho wamandla ophuculweyo kunye nokunciphisa amandla.
● Ioyile kunye negesi:Ukugcina amandla azinzileyo ekufumaneni i-oyile kunye nokukhutshwa kwegesi kunye nendawo yokulungisa igesi.
● Ukusebenza kwemigodi:Ukuqinisekisa ukuhanjiswa kwamandla athembekileyo kwimisebenzi yemigodi, nokuba kuncitshiswe imithwalo.
● Ukudityaniswa kwamandla ahlaziyiweyo:Ukutshintsha kwamandla okutshintsha kobungakanani bamandla ahlaziyekayo afana neSolar namandla omoya.
● Iinkqubo zombane zokuSebenzisa:Ukuphucula uzinzo lwegridi kunye nomgangatho wamandla kwinethiwekhi yothungelwano lwamandla amakhulu.

Chwetheza ii-verators zeKhabhinethi eziPhambili zibonelela ngesisombululo esomeleleyo nesinyanzelekileyo sokusebenzisa iinkqubo zombane ezifanelekileyo ekufumaneni iindawo zeshishini.

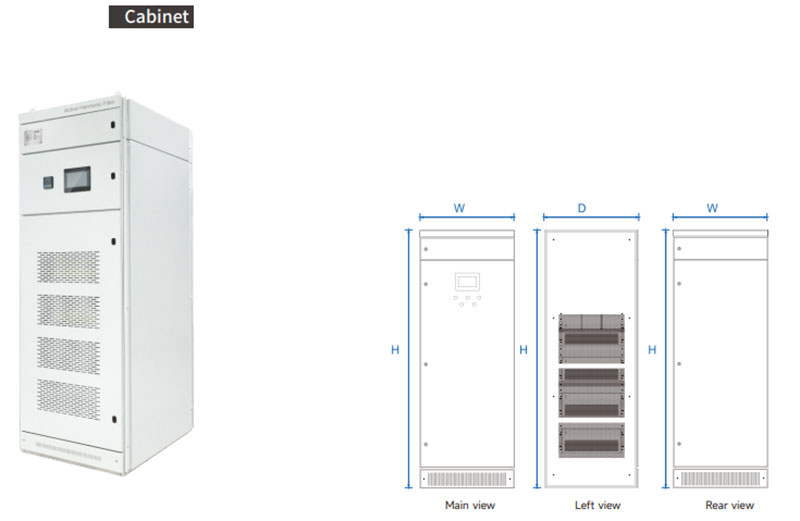

Cabinet-type Advanced Static Var Generator

Iparamitha zobugcisa:

	I-220V uthotho	380v Serichunge		I-500v Series		I-690v Series
Ukuphakama	<2000m, ngaphezulu kwe-2000m, i-DEFRAY NO-GB / T3859.2
Ubushushu obugciniwe	-20 ~ + 50 ℃
Ubuntu bezizalwane	≤90%, akukho uqinisekiso kumphezulu xa ubushushu benyanga ubuncinci bungama-25 ℃
Inqanaba lokungcola	Inqanaba le-III ngezantsi
I-Voltage eSebenzayo	I-AC220V ± 20%	I-AC380V ± 20%		I-AC500V ± 20%		I-AC690V ± 20%
Ukusebenza rhoqo	I-50hz ± 5%
Imbuyekezo eMbuyekezo	I-5kvar	I-15/35/50/75 / 100kvar		I-90kvar		I-120kvar
Ubume begridi	L / n	I-3P3W / 3P4W
Inani leeyunithi ezixhunyiwe kwi-parallel	Incitshisiwe
Ukusebenza kakuhle komatshini ngokubanzi	≥97%
I-off frequency	32kz	16kz		12.8KHz		12.8KHz
Ukuchongwa komsebenzi	Amandla asebenzayo	Yenza i-POWURE POR, uphinda usebenze
Inqanaba leMbuyekezo yamandla aSebenzayo	≥99%	> I-95%
Ixesha lokuphendula elipheleleyo	<10ms
Ingxolo	≤60DB	≤60DB		≤65db		≤65db
Indlela yokulawula	I-2--Indlela ye-R485 ye-Nokia (ixhasa i-GPRS / WiFi)
Ukhuseleko	Ukulayisha ngaphezulu, isoftware / isoftware ephezulu, i-overvolstage ye-grid kunye nokungaphantsi komhlaba, ukusilela kwamandla, ukhuseleko olungaqhelekanga, i-qho.		Ukulayisha ngaphezulu, isoftware / isoftware ephezulu, i-Grid Overvollicage kunye ne-Grid Ibanondila, ukusilela kwamandla, ukusilela kwamandla, ukhuseleko lwesekethe, ukhuseleko lwesekethe, njl.
Indlela yokufaka	I-rack / i-wall-ikhutshiwe				Rack
Umgca ongenayo	Umqolo ongenayo (Uhlobo lwerack), ingenangaphezulu (i-Wall-inyuka)				Umgca ongenayo
Inqanaba lokhuseleko	IP20

Imodeli kunye nokucaciswa:

Cabinet-type Advanced Static Var Generator

Imodeli yesixhobo seKhabhinethi
Inombolo yemodeli	Umthamo weMbuyekezo (i-Kvar)	I-Voltage yeNkqubo (v)	Ubungakanani (d * h * h)	Indlela yokupholisa
I-GY ASVG-04-200k / 4l-c	200	I-380 ± 20%	I-800 * 1000 * 2200mm	Ukunyanzelwa kokupholisa umoya
I-GY ASVG-04-20K / 4l-C	250	I-380 ± 20%	I-800 * 1000 * 2200mm
I-GY ASVG-04-300K / 4l-C	300	I-380 ± 20%	I-800 * 1000 * 2200mm
I-GY ASVG-0,4-400K / 4l-C	400	I-380 ± 20%	I-800 * 1000 * 2200mm
I-GY ASVG-0,5-270K / 4l-C	270	I-500 ± 20%	I-800 * 1000 * 2200mm
I-GY ASVG-069-360K / 4l-C	360	I-690 ± 20%	I-800 * 1000 * 2200mm

Iithegi ezishushu: Chwetheza ikhabhathi
