I-500V i-rack and static valerator
I-500V i-rack ankuthane i-static valerator yenzelwe ukubonelela ngokulungiswa kwamandla ombane kunye nokuzinza kwe-voltage kwizicelo ezifunwayo. Kuba amashishini afuna ukusebenza kunye nokuthembeka, cela ikopi namhlanje! Iqela lethu likulungele ukubonelela ngezisombululo ezenzelwe wena ukuze zihambelane neemfuno zakho ezizodwa. Ngobuchwepheshe obuqhubela phambili kunye nokusebenza okuqinisekileyo, lo mvelisi uyakuzalisa iinkqubo zakho zombane kwaye anciphise iindleko zamandla.
I-500V i-rack i-static valerator (i-SVG) ibonelela ngembuyekezo yamandla asebenzayo esebenzayo kwiinkqubo zombane zenqanaba ezintathu 500v. Ukusebenzisa ulawulo lwe-DSP + CPLD TOPIT kunye ne-topology yenqanaba elithathu, ibonelela ngembuyekezo ekhawulezileyo nechanekileyo, iphumeza ixesha lokuphendula elingaphantsi kwe-10ms. I-Rack Mount uyila lula ukufaka lula ufakelo ngaphakathi kunye nolondolozo ngaphakathi kwe-19 ye-intshi i-racks. Le svg yenzelwe ubungakanani be-90kvar, eyenza ilungele izicelo eziphezulu zombane.
Inkcazo yemodeli:
| Gy | Svg | 0.5 | I-90k | / | 4l | R |
| Ikhowudi yeShishini | I-Static Vernerator | Inqanaba le-voltage I-0.5: 500V ± 20% |
Umthamo omiselweyo (Kvar) kwikota ye-90 | I-3l: isigaba esithathu esithathu I-4l: iSigaba se-5 se-4 |
R: i-rack athe rack |
Iimbonakalo:
● Sebenzisa i-DSP + CPDA LOLWAZI LOKUGQIBELA LOMGAQO-NKQUBO, Itekhnoloji ye-Topology yeTekhnoloji ye-TOPOORK, ISICWANGCISO SOKUSETYENZISWA KOMGAQO-NKQUBO WOKUGQIBELA WOKUFUMANEKA KWEXESHA LOKUFUNDA NOKUGQIBELA.
● Ukuthatha uyilo lwemodyuli, eququzelela unxibelelwano olufanayo lwemodyuli ezininzi, kuthatha indawo encinci kwaye kulula ukuyigcina.
● Uyilo lolwakhiwo lwezinto ezizimeleyo zomoya kunye neendawo zokugcina izithembiso ziqinisekisa ukusebenza kwezinto.
● Yenza imbuyekezo eguqukayo epheleleyo yamandla asebenza ngokuthintela amandla kunye namandla asebenzayo asebenzayo, kwaye usombulule ingxaki yenqanaba lesithathu ngexesha elinye.
● Isantya sokuphendula esinamandla kumthwalo sikwinqanaba le-milzecond, elinokufikelela kwimbuyekezo eguqukayo nechanekileyo kumandla asebenzeyo.
Izicelo:
I-500v i-rack and rack staterators i-stageic velege fumana isicelo kwi-voltages se-voltage Shishini efunekayo
● Ukulungiswa kwe-voltage ye-voltageUkuphucula imeko yamandla kwiinkqubo ze-voltage (500v), ukunciphisa iindleko zombane kunye nokwenza umthamo wenkqubo.
● Ulawulo lwe-voltage-voltage:Ukuphucula ukusebenza kunye nokusebenza kweemotors eziphakathi zevolthi ngokuhlawula imfuno yamandla asebenzayo.
● Ukudityaniswa kwamandla ahlaziyiweyo (i-voltage ephakathi):Ukuxhasa ukudityaniswa kwemithombo yamandla ephakathi ehlaziyiweyo, ukuqinisekisa uzinzo lwegridi kunye nomgangatho wamandla.
● Ulawulo lwamandla oluhlaza okwezishishini:Ukubonelela ngevolthi yokuzinza kunye nokuphuculwa komgangatho wamandla kwiinkqubo zeshishini ezisebenza kwiinkqubo ze-500v.
I-500v i-rack and rack staterators ibonelela ngesisombululo esomeleleyo nesisebenza kakuhle sokuphucula umgangatho wamandla kunye nokusebenza ngokuphumelelayo kwiinkqubo zamandla okusebenza kwi-voltage.
Iparamitha zobugcisa:
| I-220V uthotho | 380v Serichunge | I-500v Series | I-690v Series | |||
| Ukuphakama | <2000m, ngaphezulu kwe-2000m, i-DEFRAY NO-GB / T3859.2 | |||||
| Ubushushu obugciniwe | -20 ~ + 50 ℃ | |||||
| Ubuntu bezizalwane | ≤90%, akukho uqinisekiso kumphezulu xa ubushushu benyanga ubuncinci bungama-25 ℃ | |||||
| Inqanaba lokungcola | Inqanaba le-III ngezantsi | |||||
| I-Voltage eSebenzayo | I-AC220V ± 20% | I-AC380V ± 20% | I-AC500V ± 20% | I-AC690V ± 20% | ||
| Ukusebenza rhoqo | I-50hz ± 5% | |||||
| Imbuyekezo eMbuyekezo | I-5kvar | I-15/35/50/75 / 100kvar | I-90kvar | I-120kvar | ||
| Ubume begridi | L / n | I-3P3W / 3P4W | ||||
| Inani leeyunithi ezixhunyiwe kwi-parallel | Incitshisiwe | |||||
| Ukusebenza kakuhle komatshini ngokubanzi | ≥97% | |||||
| I-off frequency | 32kz | 16kz | 12.8KHz | 12.8KHz | ||
| Ukuchongwa komsebenzi | Amandla asebenzayo | Yenza i-POWURE POR, uphinda usebenze | ||||
| Inqanaba leMbuyekezo yamandla aSebenzayo | ≥99% | > I-95% | ||||
| Ixesha lokuphendula elipheleleyo | <10ms | |||||
| Ingxolo | ≤60DB | ≤60DB | ≤65db | ≤65db | ||
| Indlela yokulawula | I-2--Indlela ye-R485 ye-Nokia (ixhasa i-GPRS / WiFi) | |||||
| Ukhuseleko | Ukulayisha ngaphezulu, isoftware / isoftware ephezulu, i-overvolstage ye-grid kunye nokungaphantsi komhlaba, ukusilela kwamandla, ukhuseleko olungaqhelekanga, i-qho. | Ukulayisha ngaphezulu, isoftware / isoftware ephezulu, i-Grid Overvollicage kunye ne-Grid Ibanondila, ukusilela kwamandla, ukusilela kwamandla, ukhuseleko lwesekethe, ukhuseleko lwesekethe, njl. | ||||
| Indlela yokufaka | I-rack / i-wall-ikhutshiwe | Rack | ||||
| Umgca ongenayo | Umqolo ongenayo (Uhlobo lwerack), ingenangaphezulu (i-Wall-inyuka) | Umgca ongenayo | ||||
| Inqanaba lokhuseleko | IP20 | |||||
Imodeli kunye nokucaciswa:
| Iimodeli | ||||
|---|---|---|---|---|

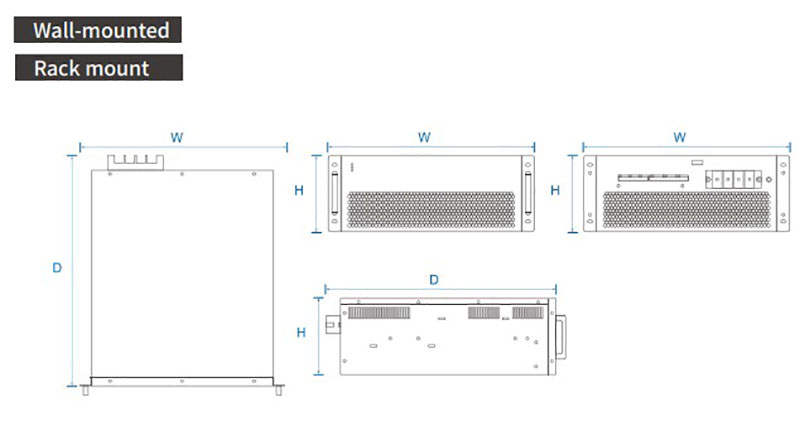

| Inombolo yemodeli | Umthamo weMbuyekezo (i-Kvar) | I-Voltage yeNkqubo (v) | Ubungakanani (d * h * h) | Indlela yokupholisa |
| I-GY SVG-0.222-5K / 2l-r / w | 5 | 220 | I-220 * 330 * 160mm | Ukunyanzelwa kokupholisa umoya |
| I-GY SVG-04-15k / 4l-r / w | 15 | I-380 ± 20% | I-460 * 490 * 89mm | |
| I-GY SVG-04-35k / 4l-r / w | 35 | I-380 ± 20% | I-460 * 490 * 89mm | |
| I-GY SVG-0.4-50K / 4l-r / w | 50 | I-380 ± 20% | I-500 * 510 * I-190mm | |
| I-GY SVG-0.4-75K / 4l-r / w | 75 | I-380 ± 20% | I-500 * 550 * 240mm | |
| I-GY SVG-04-100k / 4l-r / w | 100 | I-380 ± 20% | I-500 * 550 * 240mm | |
| I-GY SVG-0.5-90K / 4l-r / w | 90 | I-500 ± 20% | I-495 * 675 * 275mm | |
| I-GY SVG-0.69-120K / 4l-r / w | 120 | I-690 ± 20% | I-495 * 675 * 275mm | |
